Request types

Relay has separate request modes for protocols that behave differently on the wire. Each mode changes the editor tabs, send/connect controls, response panel, and export behavior to match.

A new request always starts as HTTP — the + in the tab bar, Cmd/Ctrl N, and Add request in the sidebar open it straight away, with no dialog. To use another protocol, pick it from the menu at the start of the address bar, or run New GraphQL request, New WebSocket request, New Socket.IO request, New gRPC request, or New MCP request from the command palette.

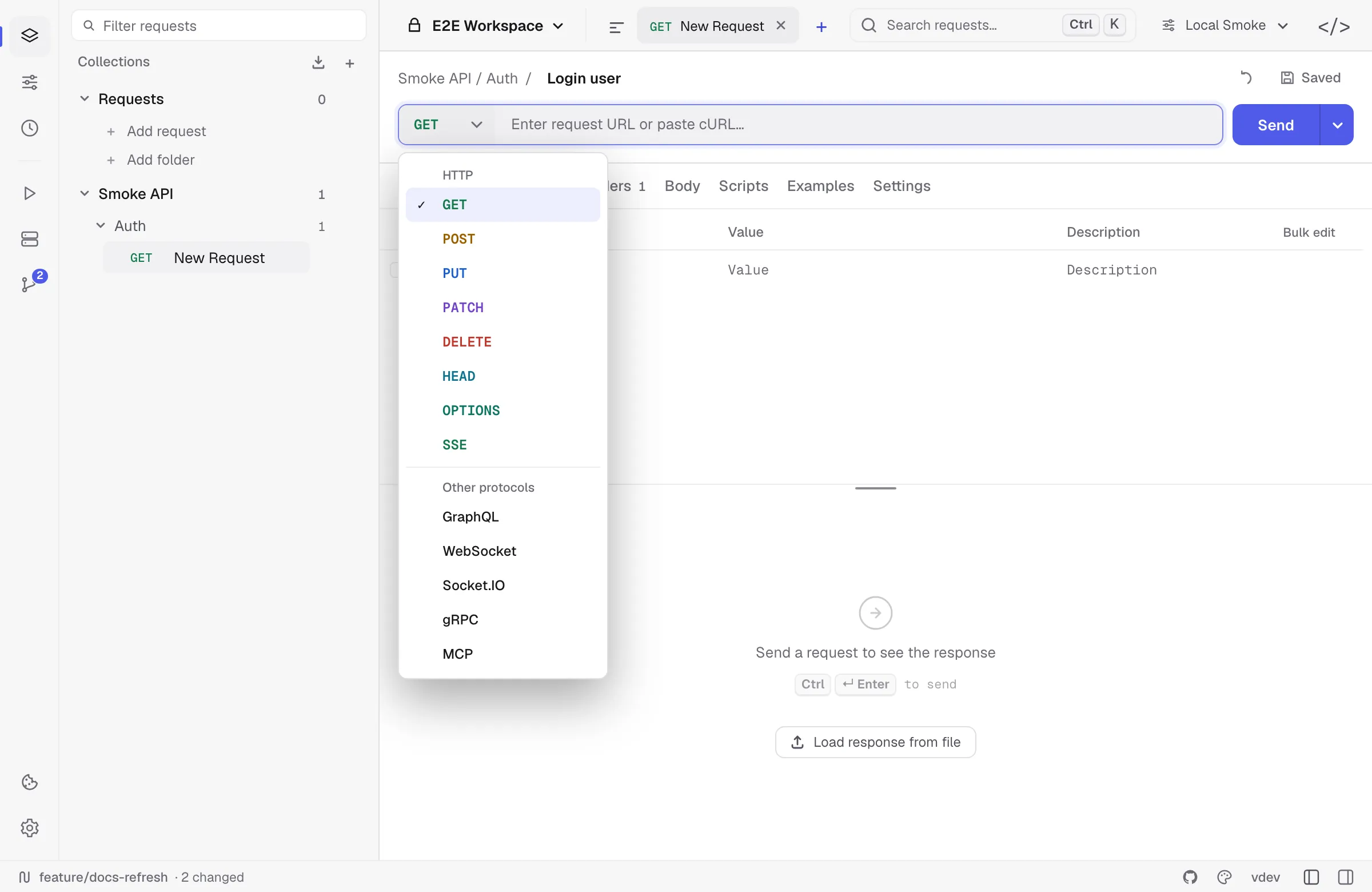

The picker holds both decisions: the HTTP methods on top, the other protocols below. A draft can switch protocol at any time — pick POST on a GraphQL draft and it becomes an HTTP request. A saved request can switch until it has a URL; after that its protocol is fixed, the picker still changes an HTTP request’s method, and a request of any other type shows its protocol without a menu.

At a glance

Type	Use it for	Main tabs	Response surface	Runner support
HTTP	REST, JSON APIs, forms, files, regular request/response flows	Params, Auth, Headers, Body, Scripts, Settings	Body, Headers, Scripts	Yes
GraphQL	Queries, mutations, variables, schema exploration	Query, Auth, Headers, Schema, Scripts, Settings	Body, Headers, Scripts	Yes
SSE	text/event-stream subscriptions over HTTP	Params, Auth, Headers, Settings	SSE event stream	No
WebSocket	Raw ws:// / wss:// sessions	Params, Auth, Headers, Message, Settings	Frames, handshake, logs	No
Socket.IO	Socket.IO servers with namespaces/events	Params, Auth, Headers, Events, Message, Settings	Events, handshake, logs	No
gRPC	Protobuf RPCs with metadata/reflection/proto files	Metadata, Body, Service, Scripts, Settings	Messages, metadata, trailers, scripts	Yes
MCP	Model Context Protocol servers — list their tools and call one by hand	Arguments, Auth, Headers, Scripts, Settings	Result, raw exchange, notifications	Yes

Realtime requests are intentionally skipped by the Collection Runner because they are long-lived sessions. gRPC is runnable because each invocation produces a bounded response.

HTTP

HTTP is the default mode. It supports:

• Methods: GET, POST, PUT, PATCH, DELETE, HEAD, OPTIONS, and SSE.
• Query params and headers as editable rows.
• Auth, body, scripts, request notes, and per-request settings.
• JSON, text, XML, HTML, form-data, urlencoded, GraphQL-shaped body, and binary-file bodies.
• cURL import from the URL bar.

Use HTTP for normal REST APIs. Use the SSE method only when the endpoint keeps an event stream open.

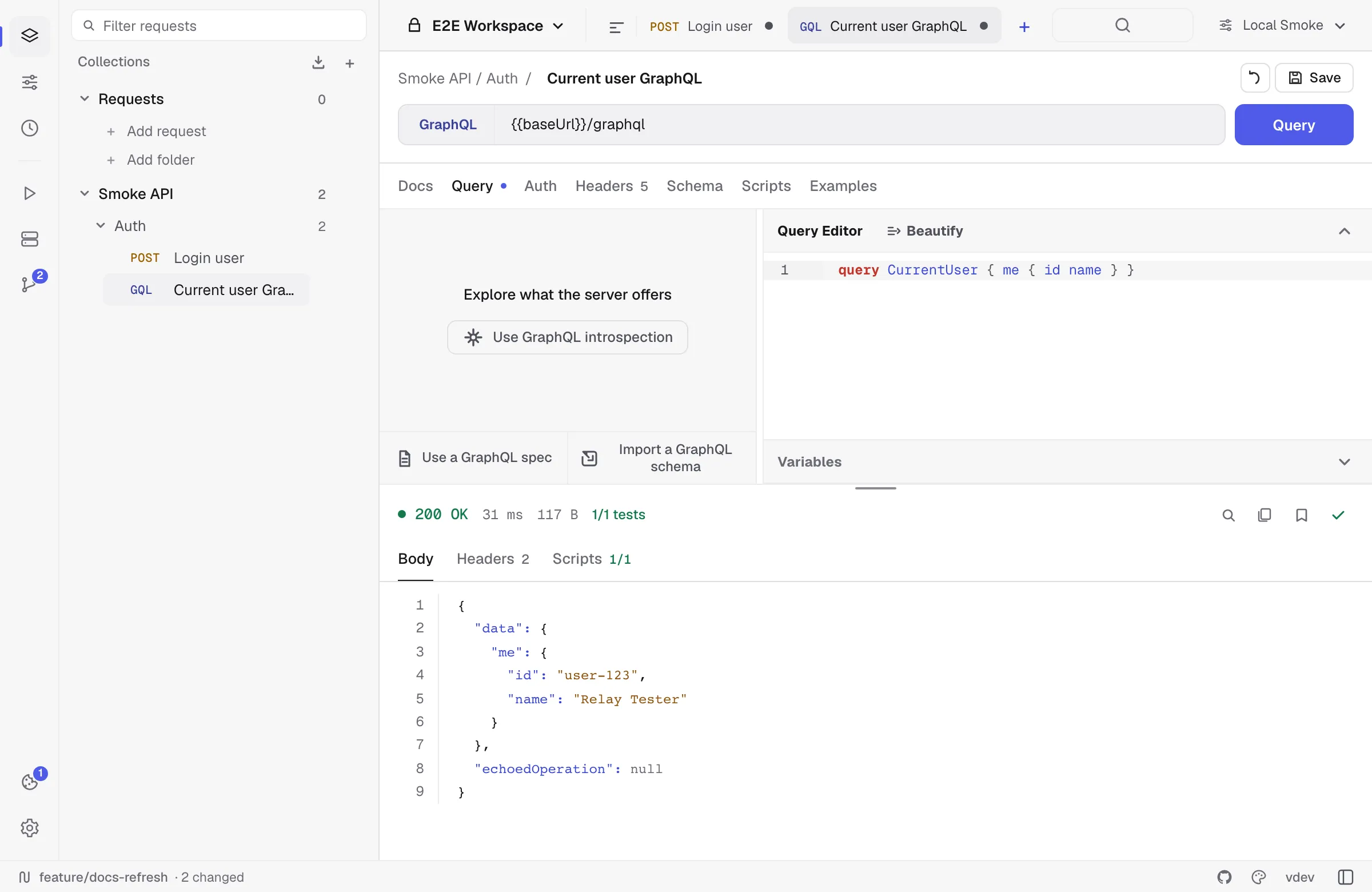

GraphQL

GraphQL requests use POST and store the query, variables, and operation name as a GraphQL payload. The Query tab is optimized for editing GraphQL text and variables; the Schema tab can hold an imported schema or an introspection result.

GraphQL still uses the normal auth, headers, scripts, environments, cookies, and response viewer paths. Exports preserve GraphQL where the target format supports it.

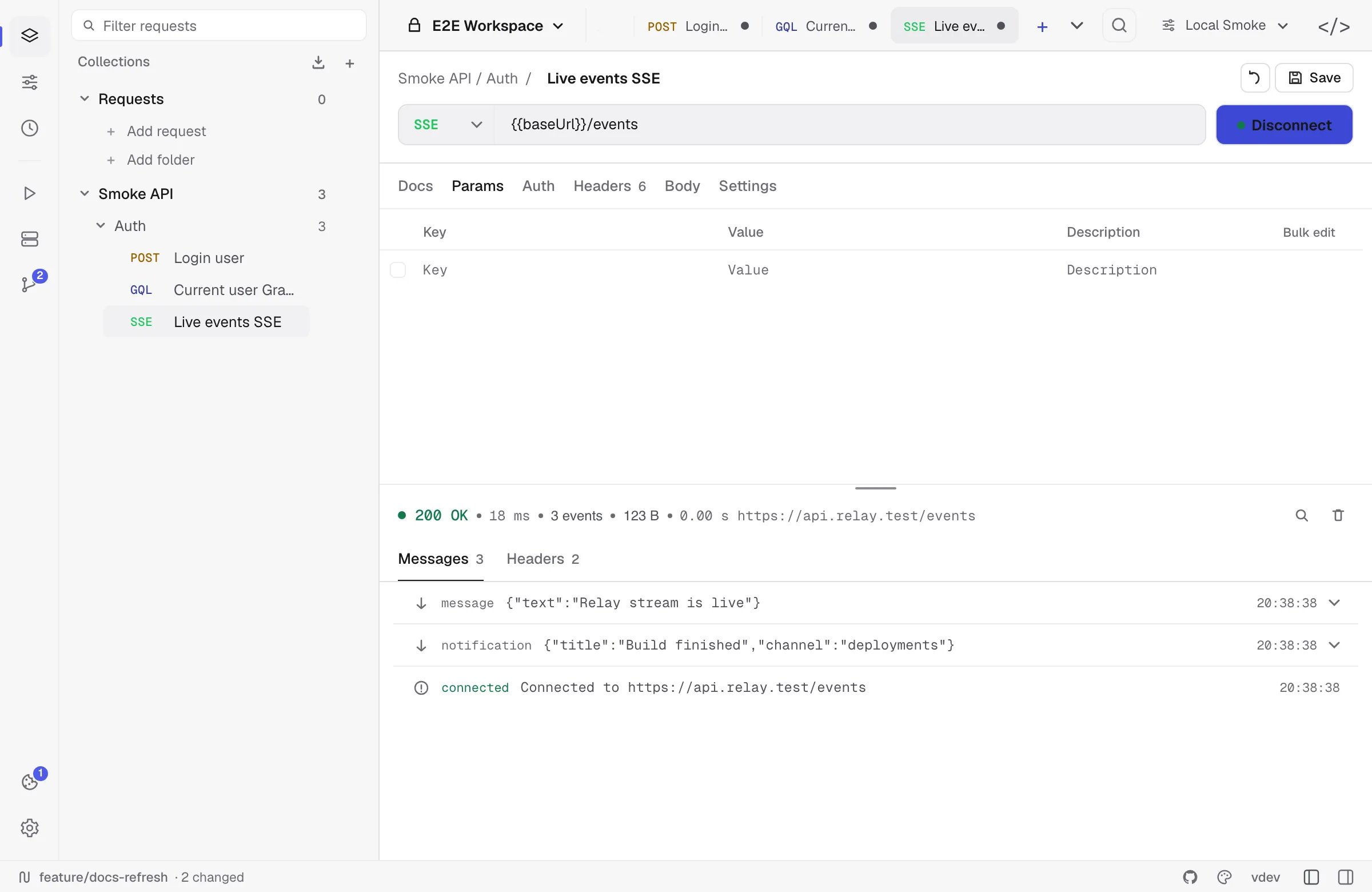

Server-Sent Events

SSE is an HTTP request with long-lived streaming semantics:

1. Create an HTTP request.
2. Set the method to SSE.
3. Enter the stream URL and any auth/headers.
4. Press Connect.

Relay adds Accept: text/event-stream, Cache-Control: no-cache, and Connection: keep-alive when building the request. Events appear as they arrive and the session is written to history once the stream connects or errors.

An SSE request has no Scripts tab: a subscription is opened rather than sent, and pre-request and test scripts do not run on that path. Reconnection is configurable — see SSE-specific settings.

The SSE method subscribes with a GET and no body. An endpoint that streams events back from a POST — the streaming mode of most LLM APIs — is sent as an ordinary POST: Relay reads the stream until the server closes it and shows the raw events as the response body, within the request timeout.

The SSE event list keeps the latest events bounded for UI performance. Clear or restore visible events from the SSE panel while the session is open.

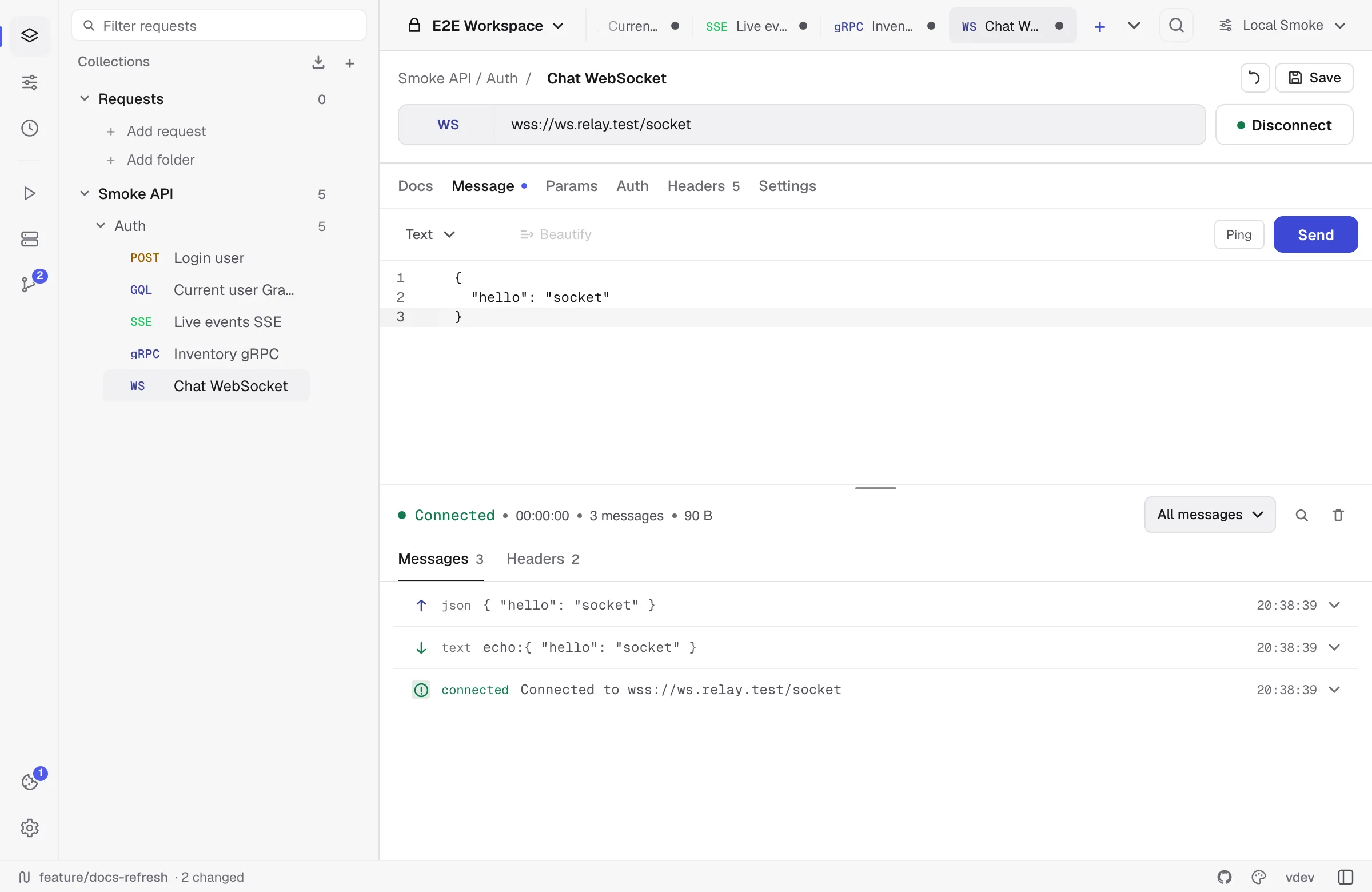

WebSocket

WebSocket requests connect to ws:// or wss:// URLs. Relay shows:

• A handshake record with request/response headers.
• Incoming/outgoing frames.
• Text, binary, ping, pong, close, reconnect, and error events.
• Reconnect settings and a max-message-size guard.

Use the Message tab to send a text or binary payload after connecting. Per-request headers and cookies are applied to the handshake, and so is the Authorization tab — Bearer, Basic, Digest and API-key auth all go out with the upgrade request, the same way they would on an ordinary send. There is no Scripts tab: the handshake does not run pre-request or test scripts.

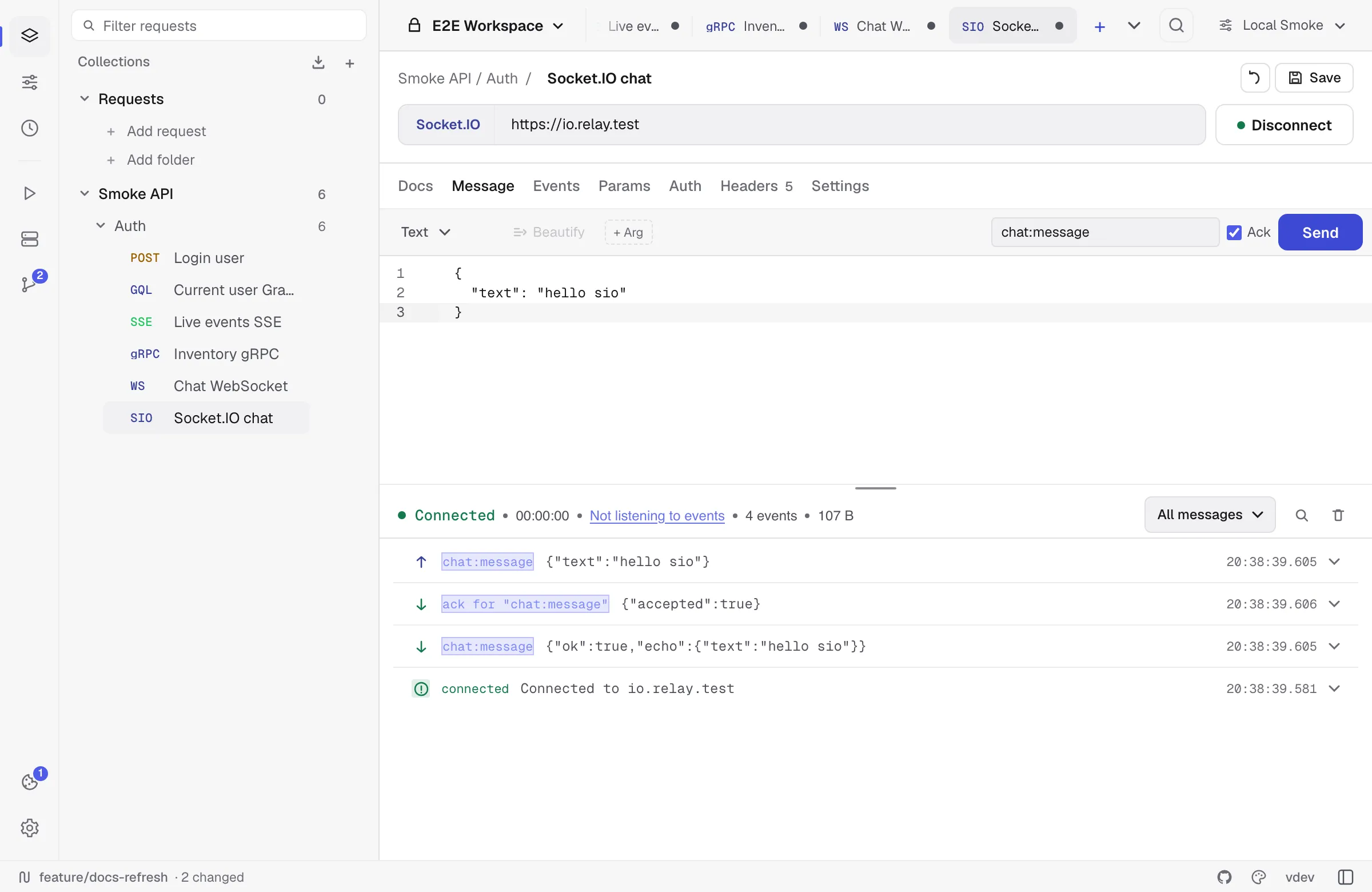

Socket.IO

Socket.IO mode speaks the Socket.IO protocol rather than raw WebSocket frames. Configure:

• Client version: v2 or v3.
• Path, usually /socket.io.
• Namespace, usually /.
• Event name, arguments, and ack behavior.
• Reconnect attempts and interval.

Socket.IO events are displayed with namespace, direction, args, and system/error rows. Cookies, headers, and the Authorization tab are applied to the Engine.IO handshake unless the request disables the cookie jar. As with WebSocket, there is no Scripts tab.

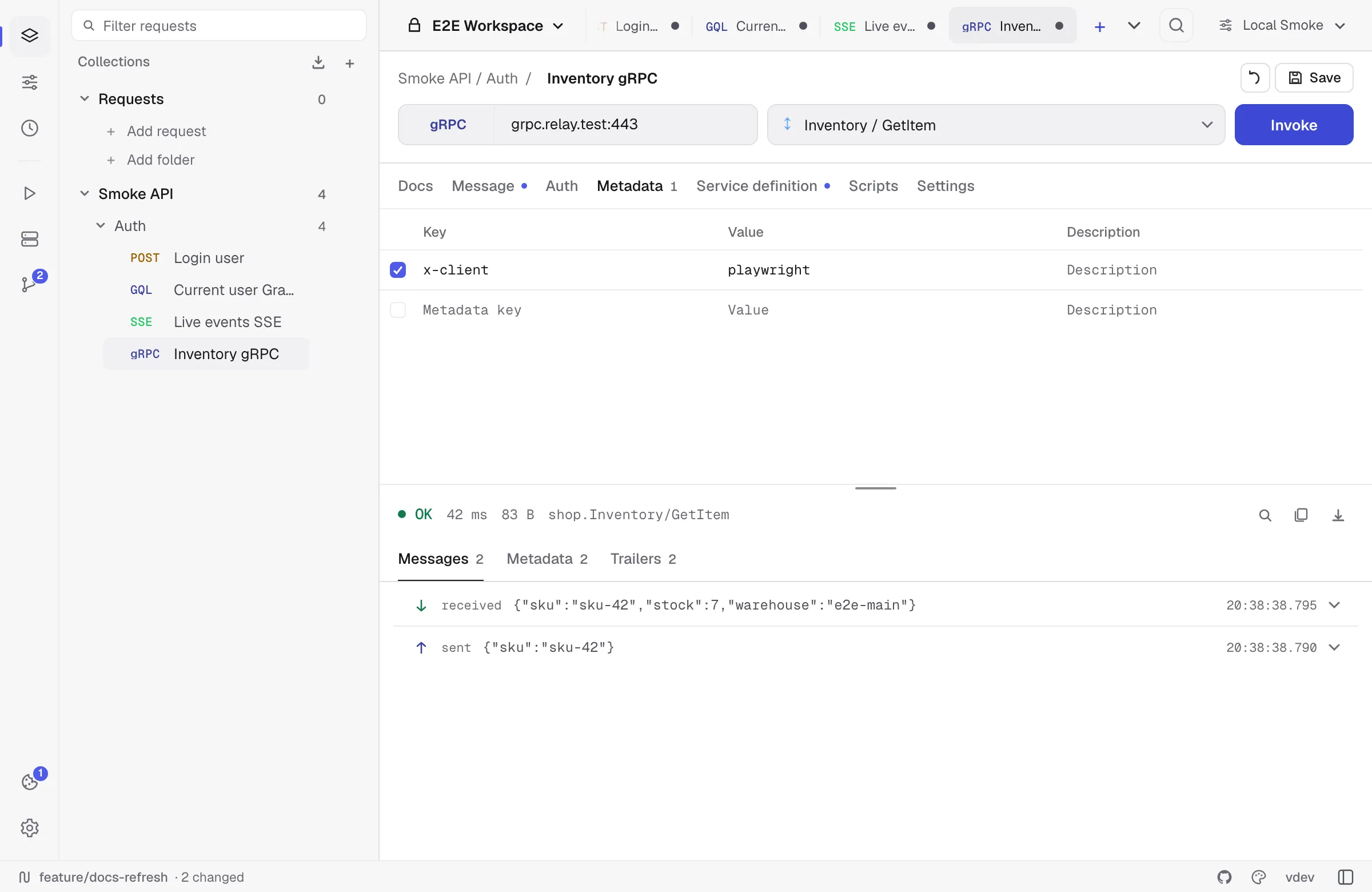

gRPC

gRPC requests target host:port or a grpc:// / grpcs:// style target. Relay can discover services by reflection when enabled, or use a selected .proto file with import paths.

The request body is JSON in protobuf JSON shape. Metadata lives in its own tab. The response panel separates:

• Messages.
• Response metadata.
• Trailers.
• Script output and test results.

gRPC supports pre-request/test scripts, environment variables, collection defaults, and runner reports.

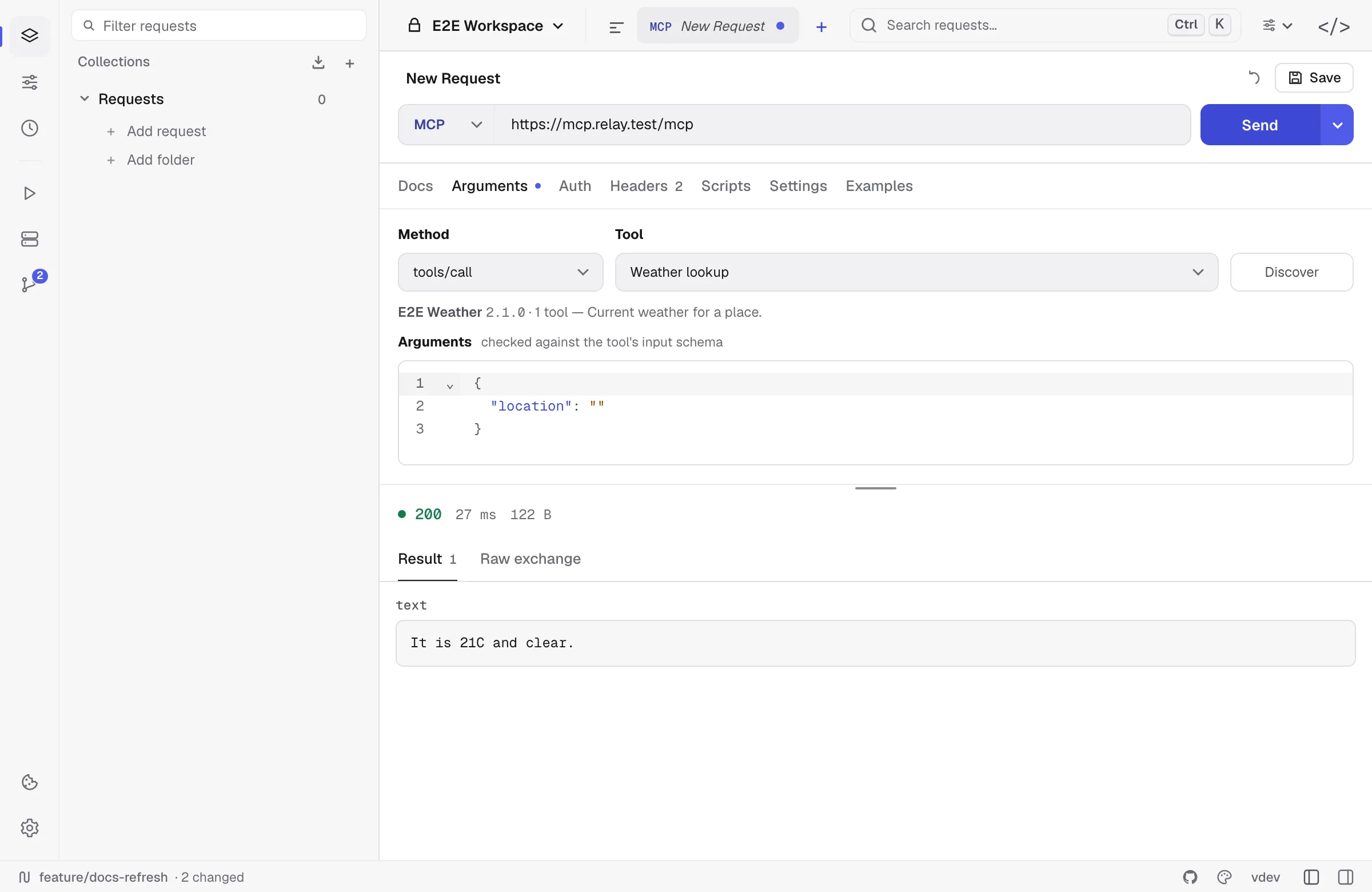

MCP

An MCP request calls a Model Context Protocol server — the servers agents talk to — without an agent in the loop. Relay speaks protocol revision 2026-07-28, which is stateless: every call is a single HTTP POST to the server’s endpoint, so an MCP call is an ordinary saved request that can be replayed, diffed, scripted and committed.

Put the server’s endpoint in the URL bar, then press Discover. Relay calls server/discover and follows it with tools/list, resources/list and prompts/list for the capabilities the server actually declares, so a server with no prompts is never asked for any. The panel then names the server, its version and what it holds.

Choose a method and, for tools/call, resources/read or prompts/get, the tool, resource or prompt to address. Picking a tool seeds the Arguments editor from the tool’s own input schema, and the arguments are checked for being a JSON object before anything is sent.

The response panel has three views:

• Result — the content blocks the server returned, its structuredContent, and, when a tool asked for more input, the inputRequests it sent back.
• Raw exchange — the JSON-RPC envelope exactly as it arrived, including the individual frames when the server answered with a stream. This is the view that makes a failing tool call diagnosable.
• Notifications — the progress and log notifications a streamed answer carried before its result.

What Relay checks on your behalf:

• A tool that contradicts its own output schema is called out. If the server publishes an outputSchema and its structuredContent does not match, the mismatch is listed as a warning — and the content is still shown, because the server is the one at fault.
• A tool whose x-mcp-header annotations the specification forbids cannot be called. Relay names the reason instead of quietly dropping the tool from the list, which is what a conforming agent client does.
• Headers the protocol derives from the body are yours to read, not to set. Mcp-Method, Mcp-Name, MCP-Protocol-Version and the Mcp-Param-* headers are built from the call; a header of the same name in the Headers tab is replaced and you are told so, because a server must reject a request whose headers and body disagree.

Auth, proxy, client certificates, redirects and the response cap are the ordinary HTTP ones — an MCP call is an HTTP request, and it carries the same settings.

Not in this release: the stdio transport, so servers launched as a local command (npx some-server) cannot be reached yet; the protocol revisions before 2026-07-28; subscriptions/listen; and sampling, which Relay declines because it has no model and is not going to acquire one.

Import and export notes

Format	Supported request types
Postman export	HTTP, GraphQL, SSE
OpenAPI/Swagger export	HTTP, SSE
OpenCollection export	HTTP, GraphQL, explicit folders
All-data backup	All request types
Git/YAML workspace	All request types

When a format cannot represent a request type, Relay skips it and shows an in-app message instead of writing a misleading partial export.
